For the cookers below written adjustment have to be done by qualified

technician.

Follow the steps given below to convert the appliance from the factory

set up to that for a different gas type.

Cookers are adjusted NG and connection type is

cylindric (1).

For LPG connection, LPG hose adapter (2) can be

fixed to cylindric adapter with seal.

Adjustments and changing injectors

Changing Injectors

•Remove grates.

•Remove burner caps and burners.

•Remove injectors by using a 7 mm wrench, then screw on the correct

injector selected from gas type category table (last page in this user

manual) according to the gas to be used.

•Follow the above steps in the reverse order

after completing the assembly of the new

injector.

Stand by Adjustment

Stand by adjustment for the cookers

without safety devices and with safety

devices and button ingition

•Turn the burner control knob to the small flame

position and remove the knob.

•If conversion from natural gas to LPG is required, turn clockwise the

by-pass screw of the gas valves with a screw driver to their final

position.

•If conversion from LPG to natural gas is required, turn anti-clockwise

the by-pass screw of the gas valves with a screw driver till a smaller

flame of ¼ size is obtained.

•After completing the adjustment, insert the knobs again.

•Check the adjustment by turning the burner control knob quickly from

maximum to minimum position. If the flame does not go out, it means

that the adjustment is correct.

•For safety devices, idle flame setting can be done with screw on valve

body. If there is ignition on the knob for idle flame setting cooktop,

toplid and panel must be removed.

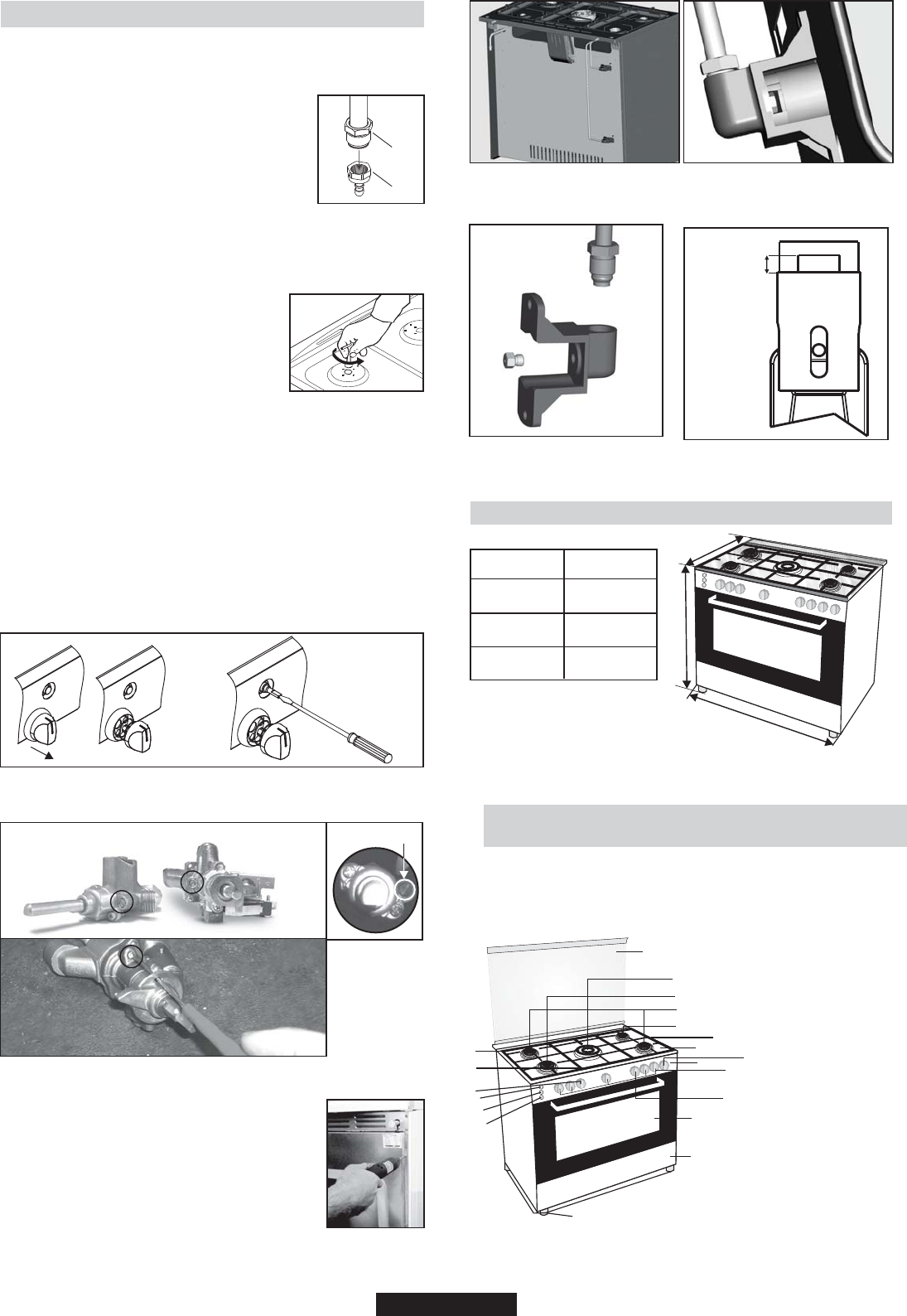

2.8. CONVERSION FOR DIFFERENT GAS TYPES

2

1

By-pass screw for the burner

Gas Oven

•Remove rear cover ( Figure3)

•Remove injector adapter.(Figure 4)

•Remove injectors by using a 7 mm wrench, then

screw on the correct injector selected from gas

type category table according to the gas to be used.

(Figure 5)

•Follow the above steps in the reverse order after

completing the assembly of the new injector.

•Burner Gap is 5 mm for LPG and 10 mm for NG.

(Figure 6)

Figure3

Figure4

safety devices

•For thermostat valve idle frame setting cooktop, top lid and panel

must be removed.

07 GB

without safety

devices

Figure5

Figure6

2.9. DIMENSIONS OF THE APPLIANCE

Height (mm)

Width (mm)

Depth (mm)

900-920

900

600

90 x 60

2.10. GENERAL APPEARANCE AND DEFINITION

OF THE APPLIANCE

This User Manual has been drawn up as a guide for several models.

Some of the properties mentioned in this manual may not exist in your

appliance.

D

H

W

5

2

1

7

6

4

3

8

9

10

11

12

13

14

15

16

17

18

19

20

1- Cook top

2- Control panel

3- Drawer

4- Oven door (Front door)

5- Glass top lid or metallic

top lid

6- Auxilary burner

7- Rapid burner

8- Semi rapid burner

9- QC

10- Left grate

11- Centre grate

12- Right grate

13- Burners control knobs

14-Thermostat oven knob

15- Upper oven burner, grill

16- Timer knob

17- Ignition button

18- Lamp knob

19- Turn spit

20- Bolt Foot

(Adjustable Feet)

(Toplid closed)

LPG 5mm

NG 10 mm

Burner Gap
