كتيب بوتاجاز CCG9105FEX Candy

كتيب

08 GB

5

10

9

7

8

11

18

15

7

6

12

17

16

19

1

2

3

4

13

14

1- Cook top

2- Control panel

3- Drawer

4- Oven door (Front door)

5- Glass top lid or metallic top lid

6- Auxilary burner

7- Rapid burner

8- Semi rapid burner

9- Rapid HP 1500W

10- Rapid HP 2000W

11- Left grate

12- Right grate

13- Burners control knobs

14- Hot plate control knobs

15-Thermostat oven knob

16- Oven grilll

17- Timer knob

18- Ignition button

19- Bolt Foo t(Adjustable Feet)

5

2

1

7

6

4

3

8

9

10

11

12

13

14

15

16

17

18

19

1- Cook top

2- Control panel

3- Drawer

4- Oven door (Front door)

5- Glass top lid or metallic

top lid

6- Auxilary burner

7- Rapid burner

8- Semi rapid burner

9- QC

10- Left grate

11- Centre grate

12- Right grate

13- Burners control knobs

14- Oven knob

15- Timer knob

16- Ignition button

17- Lamp knob

18- Turn spit

19- Bolt Foot

(Adjustable Feet)

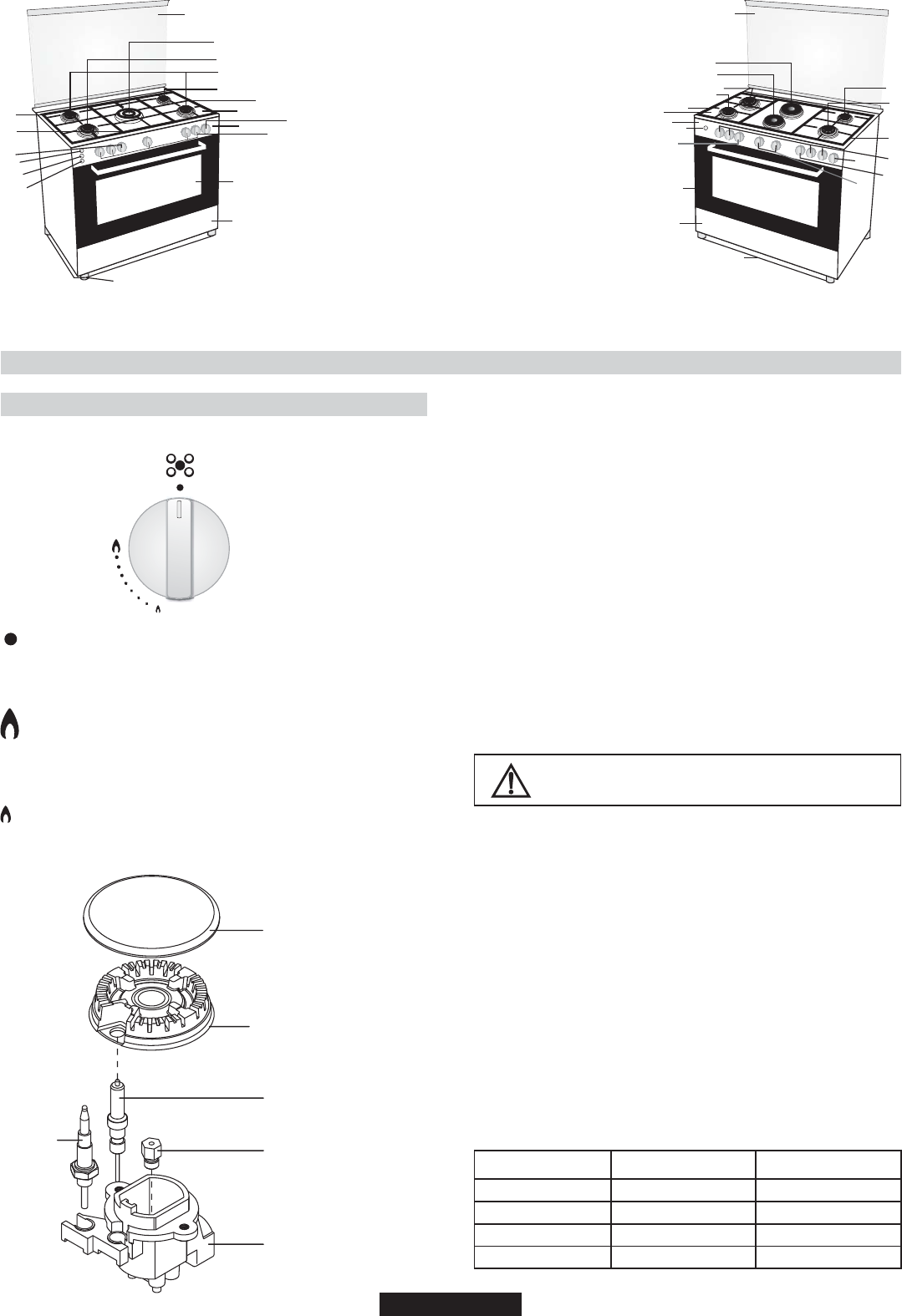

3. USE OF COOKTOP BURNERS

The knobs which control the burners are positioned on the control

panel.

3.1. USE OF COOKTOP GAS BURNERS

Figure 7

Off Position

When the knob is turned so that the 'dot' symbol faces towards

the panel, it is in the Off position and the gas valve is closed and

the flame will go out.

Maximum Gas Flow

Press the burner knob and turn it to the left till the 'dot' symbol

faces towards the large flame symbol.

The flame is on full at this position.

In this position, the gas valve is completely open.

Minimum Gas Flow

The flame can be decreased by turning the knob so that the 'dot'

symbol faces towards the small flame symbol. The valve will be

partially open and the burner will then be on low.

A - Burner Lid

B - Burner

C - Electrode

D - Injector ( Jet )

E - Burner body

F - Safety device

A

B

C

D

E

F

Figure 8

Ignition of the Burners

Cooktop Gas Burners

The burner must be ignited before a pan is placed over it.

For models with automatic ignition, the 'spark' button must be

pressed.

Press the knob controlling the burner you want to ignite and then turn it

left to the big flame symbol. Press the ignition button. On models with

ignition-thru knobs, press and turn the knob controlling the burner you

want to ignite as far as the star symbol; the electrode will be

automatically activated. All the electrodes will be activated

automatically and the burner to which gas is supplied (that relative to

the knob pressed) will ignite.

Oven Gas Burners

The button must not be kept pressed down for more than 15 sec. If the

burner has not ignited after 15 sec. release the button and open the

compartment door and/or wait at least 1min. before attempting again.

For other models the gas is ignited by means of the control knobs.

After ignition, adjust the flame to the size required.

Manual ignition (if the electricity supply is not available)

Hold a flame (a match or a lit taper or a hand-operated gas lighter),

near the burner.

WARNING! to wait 1 minute between two ignition tentative.

Press and turn the knob of the burner you want to ignite as far as the

large flame symbol. If the burner does not catch fire at the first attempt,

try again pressing the knob a little longer. When the burner is lit, adjust

the flame to the required level.

If the burner does not light after several attempts, check the correct

position of the burner and its cap.

Turn the knob clockwise to the “O” position in order to close the gas

flow. If the burner accidentally stops burning, wait at least one minute

before attempting to relight it.

Some cookers have a flame safety device (see the picture above,

safety device F). If the flame goes out, the gas supply is automatically

cut off.

Minimum and maximum diameters of the cooking pan bases :

Burner

Auxiliary Burner

Semi Rapid Burner

Rapid Burner

QC

Min. Diameter [mm]

Ø 60 mm

Ø 140 mm

Ø 220 mm

Ø 220 mm

Max. Diameter [mm]

Ø 200 mm

Ø 240 mm

Ø 280 mm

Ø 320 mm

Make sure that the gas is actually burning after this

step! If there is no flame, repeat the procedure
