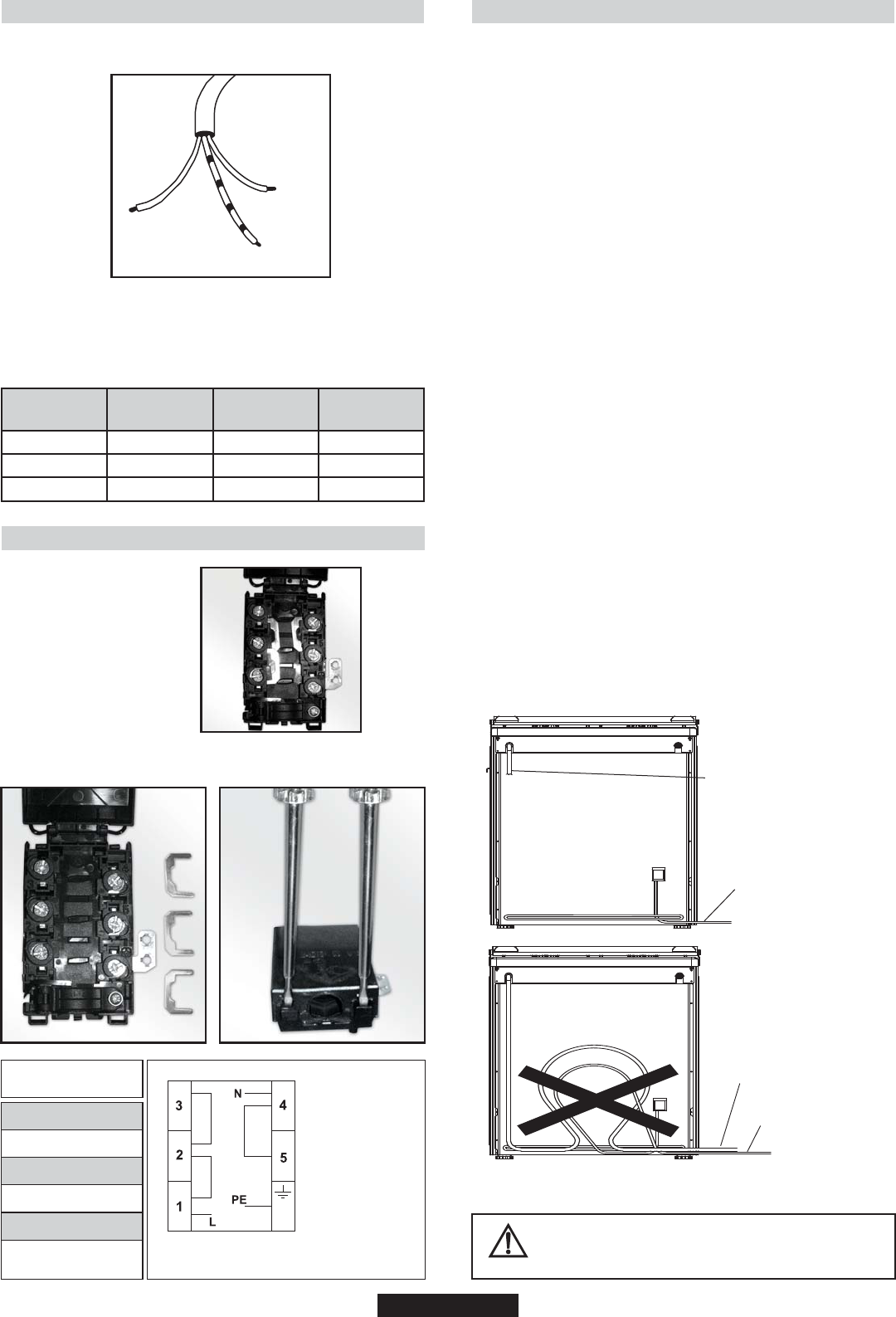

2.5. COOKERS WITH ENERGY CABLE

•Connection is exclusively envisaged under tensions of 220-240V

Between phases or between phases and neutral.

Neutral

(blue)

Ground cable (Green-Yellow)

Phase cable

(brown)

•The eventual replacement of the supply cord must be carried on by

the After Sales Service or by an agreed engineer, with a cord whose

characteristics must be similar to the original one

Model rated

power (kW)

Rated Voltage

(V)

Rated Current

(A)

Supply Cable

0.025 kW

2.5 kW

6.4 kW

220 - 240 V

220 - 240 V

220 - 240 V

0.01 A

11.4 A

28 A

2

3 x 0.75 mm

2

3 x 1.5 mm

2

3 x 4 mm

Ratings/Supply Cable Sections:

Cable box connection types

1- Monophase connection

Attention: A poor clamping can draw away risks dangerous

heating at the level of the cable feeding

2.6. COOKERS WITHOUT ENERGY CABLE

Monophase

220-240 V~

32 A

2

3 G 4 mm

L1 : Phase

shunt 1-2 and

shunt 2-3

N : Neutral

shunt 4-5

PE Earth

H05VV-F / H05RR-F

The gas must be connected to the appliance according to standard

and the provisions in force.

•When the appliance left the factory, it was regulated for the gas type

stated on the adhesive info label near the gas inlet at the back of the

appliance.

Make sure that you are using the gas stated on the label. If it is a

different type of gas, follow the instructions in the chapter on

conversion to different gas types'.

•Make sure that gas supply pressure is that given in the gas type

category table (Last page in this user manual) in order to achieve

maximum efficiency and lowest consumption. If the gas pressure is

different, a proper gas regulator should be used on the gas inlet. The

use of a gas regulator complying with the standards for LPG is

allowed.

Connection with a Solid or Flexible Metal Pipe

•The gas supply can be connected by a proper flexible stainless steel

pipe according to the safety standards in force. In this case, there will

be no further need to move the appliance. The gas inlet connector of

the appliance is Gc ½.

Connection with a Flexible Non-metallic Pipe

•If the gas connection is in a position where it can be switched on and

off when required, a flexible pipe complying with the standards in force

can be used. The flexible pipe must be firmly fixed with a clamp.

•The flexible pipe can be connected as follows:

•Since the flexible pipe will be placed behind the oven, it should be

exposed to temperatures no higher than 30ºC at any point.

•The length should be no longer than 150 cm.

•It must not be exposed to steam.

•No folding, bending or tension is allowed.

•It should be protected against sharp or piercing objects.

•It must be accessible in order to allow for periodic inspection.

•The flexible pipe must be checked as follows to guard against wear

over time:

•Check that there are no cracks, cuts or burned spots on or at the ends

of the pipe.

•The material must maintain its flexibility . Excessive rigidity is not

allowed.

•There must be no rust on the clamps.

•It should be replaced in any case after no more than 5 years' usage.

Check all connections for leaks with a soapy substance

after the installation is completed. Do not use a flame

for to check gas leaks.

2.7. GAS CONNECTION

RIGHT

FLEXIBLE GAS PIPE LINE

ELECTRICAL CABLE

WRONG

FLEXIBLE GAS PIPE LINE

ELECTRICAL CABLE
